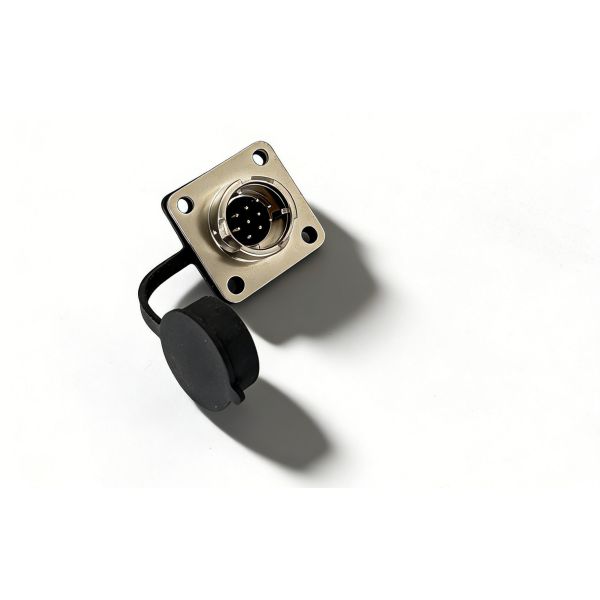

CM10 10Pins DDK Wire-Soldered Straight Pin Socket withSquare Flange Waterproof Connector
Description
The CM10 series connectors are compact circular waterproof connectors launched by Dai-ichi Densen Industry (DDK), featuring easy operation and reliable protection, and are suitable for a wide range of industrial and electronic equipment applications.
Product features
1. Equipped with a push-rotate one-click release mechanism: simply insert the plug for an instant, firm lock, and unlock effortlessly by twisting the connector ring.This clever design effectively prevents accidental disconnection caused by cable tugging, guaranteeing highly efficient and reliable performance in all industrial and electronic application
2. IP67 waterproof & dustproof rating when mated, ideal for dusty, humid and other harsh working conditions.
3. Comes with a silicone dust cap, effectively preventing pin oxidation and contact failure caused by dust during transportation or storage, and reducing damage from collisions.
Application
This series of connectors is widely used for power and signal transmission in various electronic and electrical equipment. It ensures stable connectivity for industrial automation devices, servo control systems, and waterproof - required electronic instruments.
Size and layout
The external dimensions of the CM10 are shown in the image below. Please refer to them and determine if they are suitable for your product.
Our services
1. Custom connector plastic parts, such as insulator, nut, housing etc..
2. Custom connector internal conductors, male and female pins, with silver or gold plating
3. Custom connector accessories, such as silicone rings and dust covers.
